Day 29: ggsurvfit + gtsummary - Survival Plots and Clinical Figures

Publication-ready TTE figures in pharmaverse

Back to Roadmap

1 Overview

visR was archived from CRAN on 2024-06-22. The pharmaverse recommends two actively maintained replacements:

Task Package Status
KM curves + risk tables ggsurvfit Active on CRAN + pharmaverse
Demographics / Cox tables gtsummary Active on CRAN + pharmaverse

ggsurvfit is a proper ggplot2 extension – every add_*() call is a real geom or stat, so any ggplot2::theme(), labs(), or scale function works directly without wrappers.

CNSR convention: CDISC ADaM uses CNSR = 1 for censored and CNSR = 0 for event (opposite of base R). Surv_CNSR(AVAL, CNSR) from ggsurvfit handles this automatically.

Note: pharmaverseadam does not ship an adtte dataset. This day derives Overall Survival from pharmaverseadam::adsl using DTHDT, LSTALVDT, EOSDT, and TRTSDT – a standard clinical derivation.

2 Setup

library(ggsurvfit)
library(gtsummary)
library(survival)
library(broom)
library(pharmaverseadam)
library(dplyr)
library(knitr)

adsl <- pharmaverseadam::adsl

# Inspect date and death columns confirmed in pharmaverseadam::adsl
date_cols <- grep("DT$|DTF$|ALV", names(adsl), value = TRUE)
cat("Date/death columns:", paste(date_cols, collapse = ", "), "\n")
Date/death columns: TRTSDT, TRTEDT, SCRFDT, EOSDT, FRVDT, RANDDT, DTHDT, DTHDTF, LSTALVDT
# Derive Overall Survival ADTTE from ADSL:
#   AVAL = days from TRTSDT to DTHDT (event) or LSTALVDT / EOSDT (censored)
#   CNSR = 0 (death = event) | 1 (no death = censored)  [ADaM convention]
adtte <- adsl |>
  dplyr::filter(SAFFL == "Y") |>
  dplyr::mutate(
    TRTP = TRT01P,
    CNSR = dplyr::if_else(!is.na(DTHDT), 0L, 1L),
    AVAL = dplyr::case_when(
      !is.na(DTHDT)    ~ as.numeric(DTHDT    - TRTSDT),
      !is.na(LSTALVDT) ~ as.numeric(LSTALVDT - TRTSDT),
      !is.na(EOSDT)    ~ as.numeric(EOSDT    - TRTSDT),
      !is.na(TRTEDT)   ~ as.numeric(TRTEDT   - TRTSDT) + 1,
      TRUE             ~ NA_real_
    )
  ) |>
  dplyr::filter(!is.na(AVAL), AVAL >= 0)

cat("Derived ADTTE rows:", nrow(adtte), "\n")
Derived ADTTE rows: 252
cat("Events  (CNSR=0):", sum(adtte$CNSR == 0), "\n")
Events  (CNSR=0): 3
cat("Censored(CNSR=1):", sum(adtte$CNSR == 1), "\n")
Censored(CNSR=1): 249
cat("Median AVAL (days):", median(adtte$AVAL), "\n")
Median AVAL (days): 140.5

3 Part 1: Demographic Summary

3.1 Step 1: gtsummary::tbl_summary()

# tbl_summary(by = ...) stratifies by a column.
# add_overall() appends a combined Total column.
# as_kable() renders to a kable table compatible with Quarto HTML.
adtte |>
  dplyr::select(AGE, AGEGR1, SEX, RACE, TRTP) |>
  gtsummary::tbl_summary(
    by        = TRTP,
    label     = list(AGE ~ "Age (years)", AGEGR1 ~ "Age Group",
                     SEX ~ "Sex",         RACE   ~ "Race"),
    statistic = list(
      all_continuous()  ~ "{mean} ({sd})",
      all_categorical() ~ "{n} ({p}%)"
    ),
    digits  = all_continuous() ~ 1,
    missing = "no"
  ) |>
  gtsummary::add_overall() |>
  gtsummary::bold_labels() |>
  gtsummary::as_kable()
Characteristic Overall N = 252 Placebo N = 85 Xanomeline High Dose N = 83 Xanomeline Low Dose N = 84
Age (years) 75.1 (8.3) 75.3 (8.6) 74.3 (7.9) 75.7 (8.3)
Age Group
>64 219 (87%) 71 (84%) 72 (87%) 76 (90%)
18-64 33 (13%) 14 (16%) 11 (13%) 8 (9.5%)
Sex
F 142 (56%) 52 (61%) 40 (48%) 50 (60%)
M 110 (44%) 33 (39%) 43 (52%) 34 (40%)
Race
AMERICAN INDIAN OR ALASKA NATIVE 1 (0.4%) 0 (0%) 1 (1.2%) 0 (0%)
BLACK OR AFRICAN AMERICAN 23 (9.1%) 8 (9.4%) 9 (11%) 6 (7.1%)
WHITE 228 (90%) 77 (91%) 73 (88%) 78 (93%)

4 Part 2: Kaplan-Meier Plot

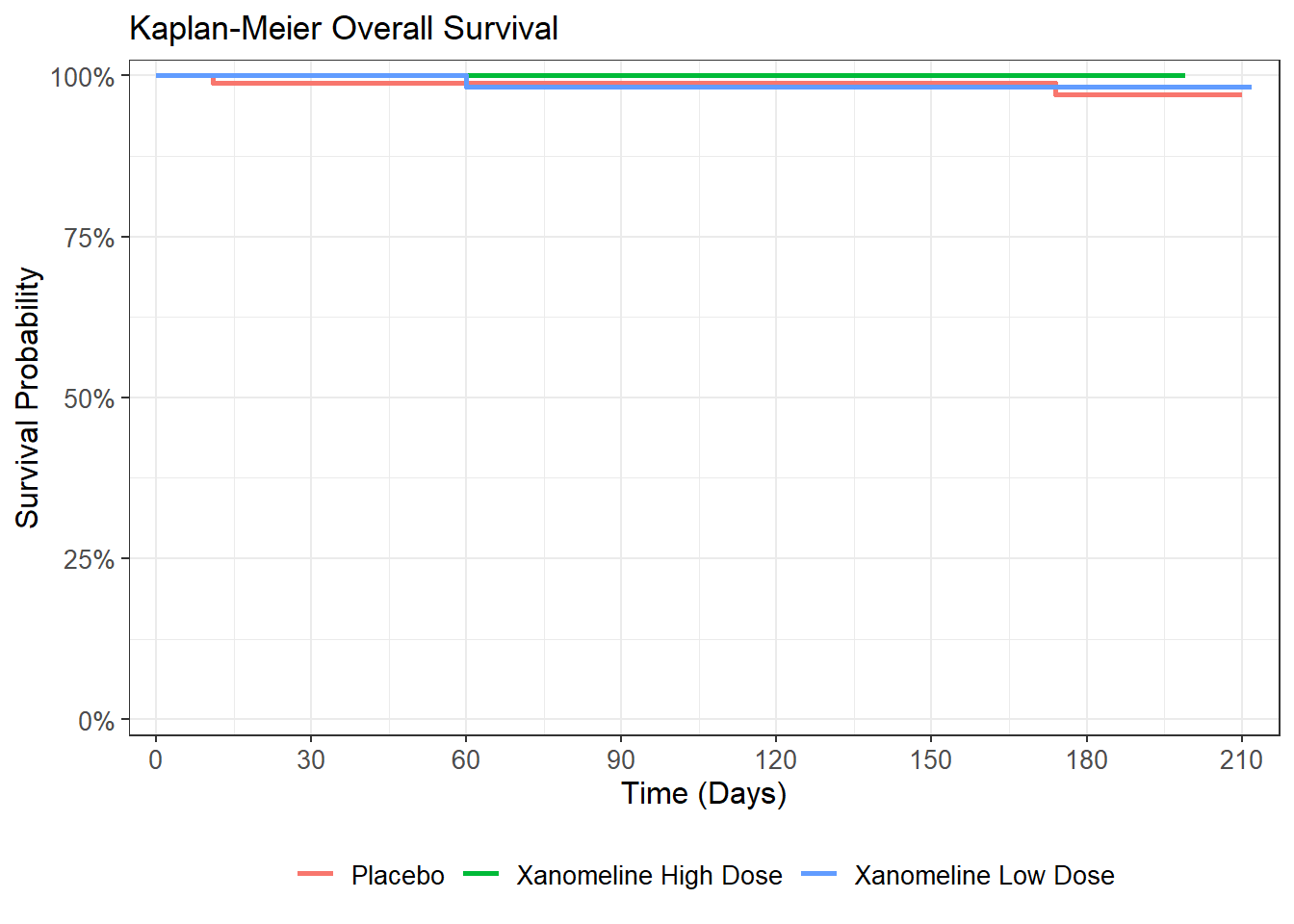

4.1 Step 2: survfit2() + ggsurvfit()

# survfit2() is ggsurvfit's survfit wrapper -- required for add_pvalue().
# It tracks the calling environment to correctly label plot elements.
# Surv_CNSR(AVAL, CNSR) converts ADaM CNSR coding to standard Surv() internally:
#   CNSR=1 (censored) -> status=0  |  CNSR=0 (event) -> status=1
# ggsurvfit uses '+' (ggplot2 extension), NOT '|>'.

km_fit <- survfit2(Surv_CNSR(AVAL, CNSR) ~ TRTP, data = adtte)
km_fit
Call: survfit(formula = Surv_CNSR(AVAL, CNSR) ~ TRTP, data = adtte)

                           n events median 0.95LCL 0.95UCL
TRTP=Placebo              85      2     NA      NA      NA
TRTP=Xanomeline High Dose 83      0     NA      NA      NA
TRTP=Xanomeline Low Dose  84      1     NA      NA      NA
km_fit |>
  ggsurvfit(linewidth = 1) +
  scale_ggsurvfit() +
  labs(
    title = "Kaplan-Meier Overall Survival",
    x     = "Time (Days)",
    y     = "Survival Probability"
  )

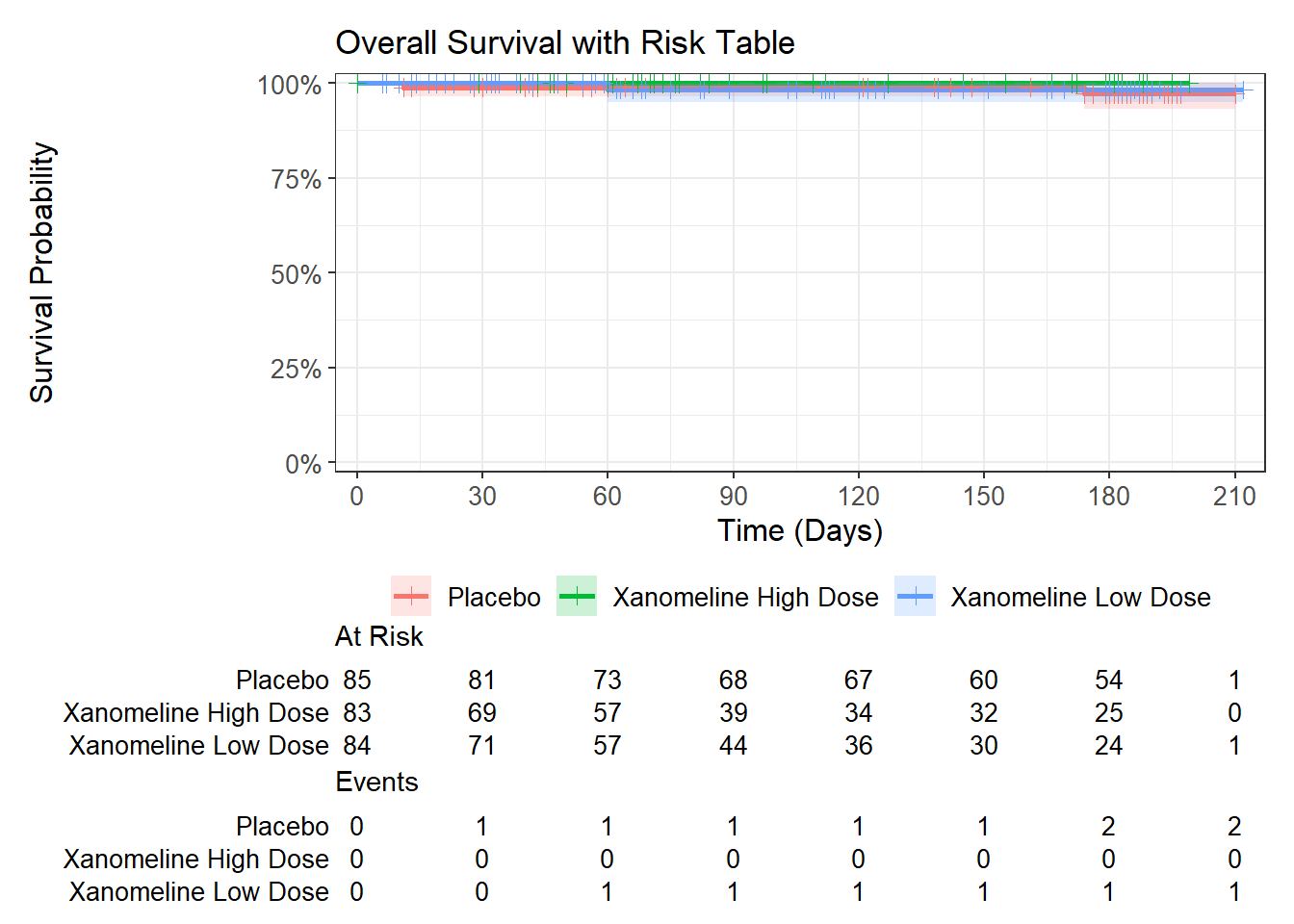

4.2 Step 3: add_confidence_interval() + add_censor_mark() + add_risktable()

# add_risktable() attaches a risk table below the plot using patchwork.
# It MUST come last in the chain -- it wraps the ggplot and cannot be
# further modified by add_* calls after it.
# risktable_stats accepts: "n.risk", "cum.event", "cum.censor",
#   or glue-style strings like "{n.risk} ({cum.event})".
# stats_label renames the risk table row labels.

km_fit |>
  ggsurvfit(linewidth = 1) +
  add_confidence_interval() +
  add_censor_mark(shape = 3, size = 2) +
  scale_ggsurvfit() +
  labs(x = "Time (Days)", y = "Survival Probability",
       title = "Overall Survival with Risk Table") +
  add_risktable(
    risktable_stats = c("n.risk", "cum.event"),
    stats_label     = list(n.risk = "At Risk", cum.event = "Events")
  )

5 Part 3: Annotated KM Plot

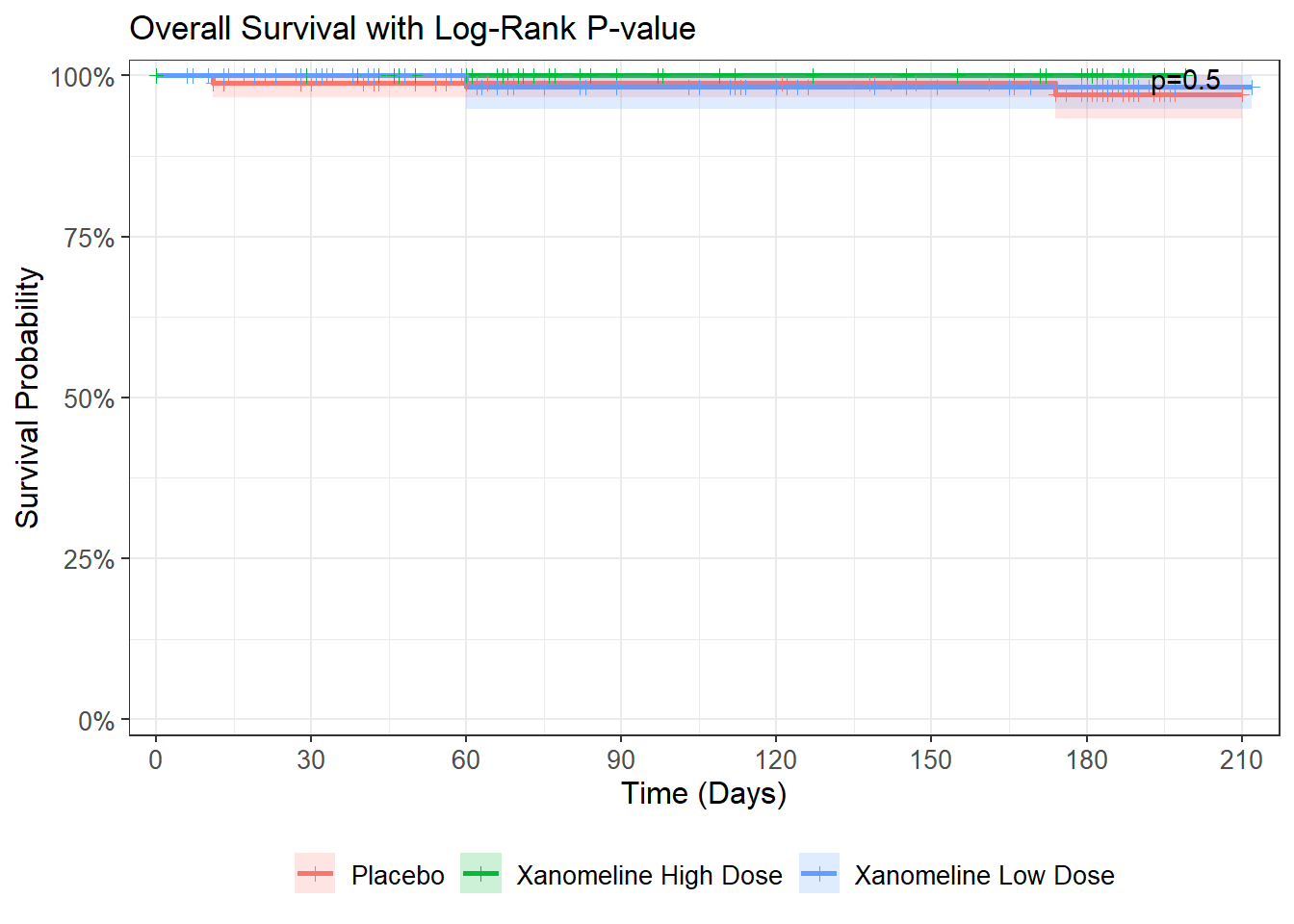

5.1 Step 4: add_pvalue() – log-rank p-value on the figure

# add_pvalue() calls survival::survdiff() log-rank test on km_fit.
# location = "annotation" places the p-value inside the plot panel.
# location = "caption"    places it in the figure caption below.
# survfit2() (not survfit()) is REQUIRED for add_pvalue() to work.

km_fit |>
  ggsurvfit(linewidth = 1) +
  add_confidence_interval() +
  add_censor_mark(shape = 3, size = 1.5) +
  add_pvalue(location = "annotation", prepend_p = TRUE) +
  scale_ggsurvfit() +
  labs(x = "Time (Days)", y = "Survival Probability",
       title = "Overall Survival with Log-Rank P-value")

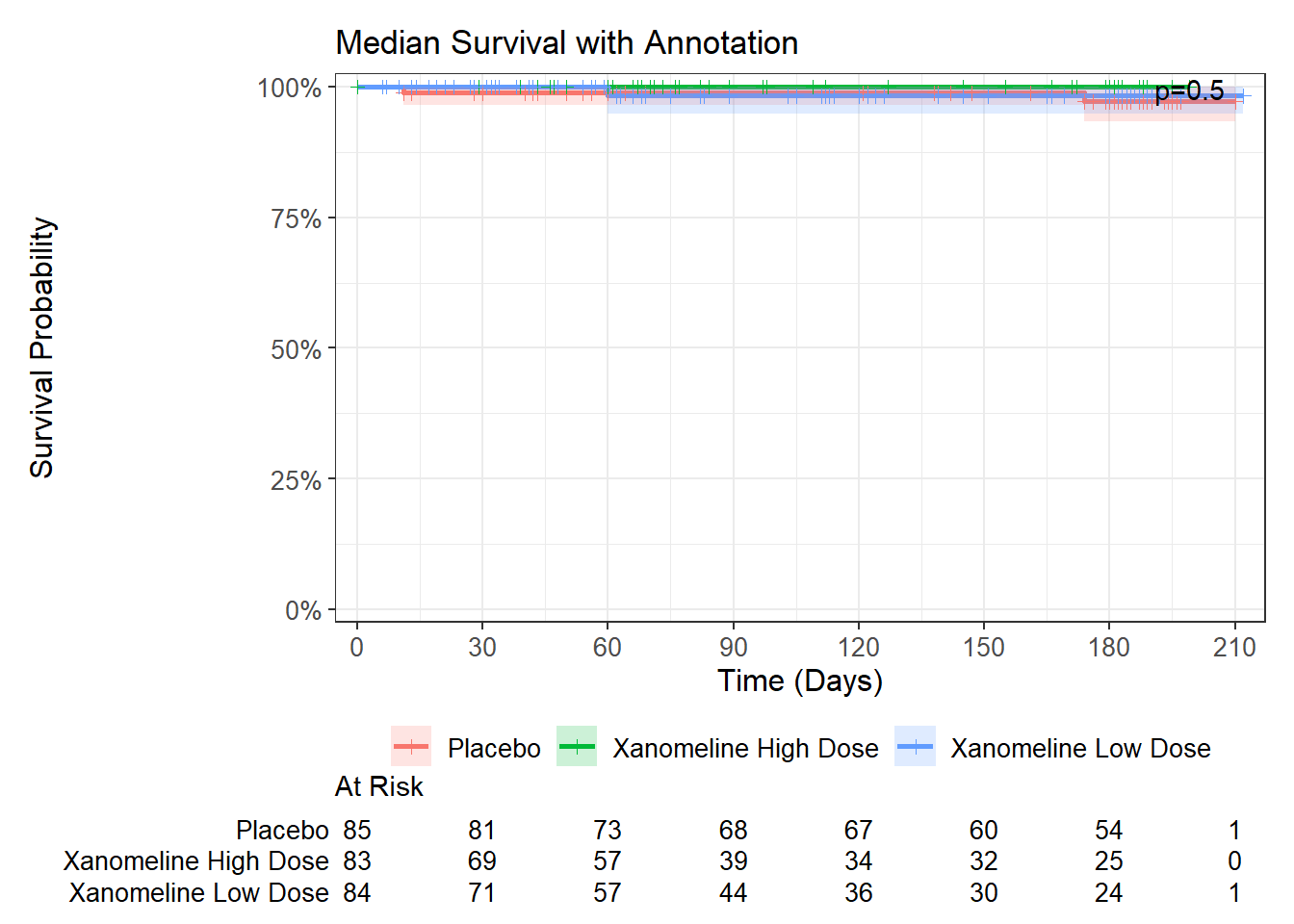

5.2 Step 5: add_quantile() – median survival line

# add_quantile(y_value = 0.5) draws lines at median survival (50th percentile).
# y_value is the survival probability level, NOT the time value.
# Must be called BEFORE add_risktable().

km_fit |>
  ggsurvfit(linewidth = 1) +
  add_confidence_interval() +
  add_censor_mark(shape = 3, size = 1.5) +
  add_quantile(
    y_value   = 0.5,
    color     = "grey40",
    linewidth = 0.75,
    linetype  = "dashed"
  ) +
  add_pvalue(location = "annotation", prepend_p = TRUE) +
  scale_ggsurvfit() +
  labs(x = "Time (Days)", y = "Survival Probability",
       title = "Median Survival with Annotation") +
  add_risktable(
    risktable_stats = "n.risk",
    stats_label     = list(n.risk = "At Risk")
  )

6 Part 4: KMunicate Theme

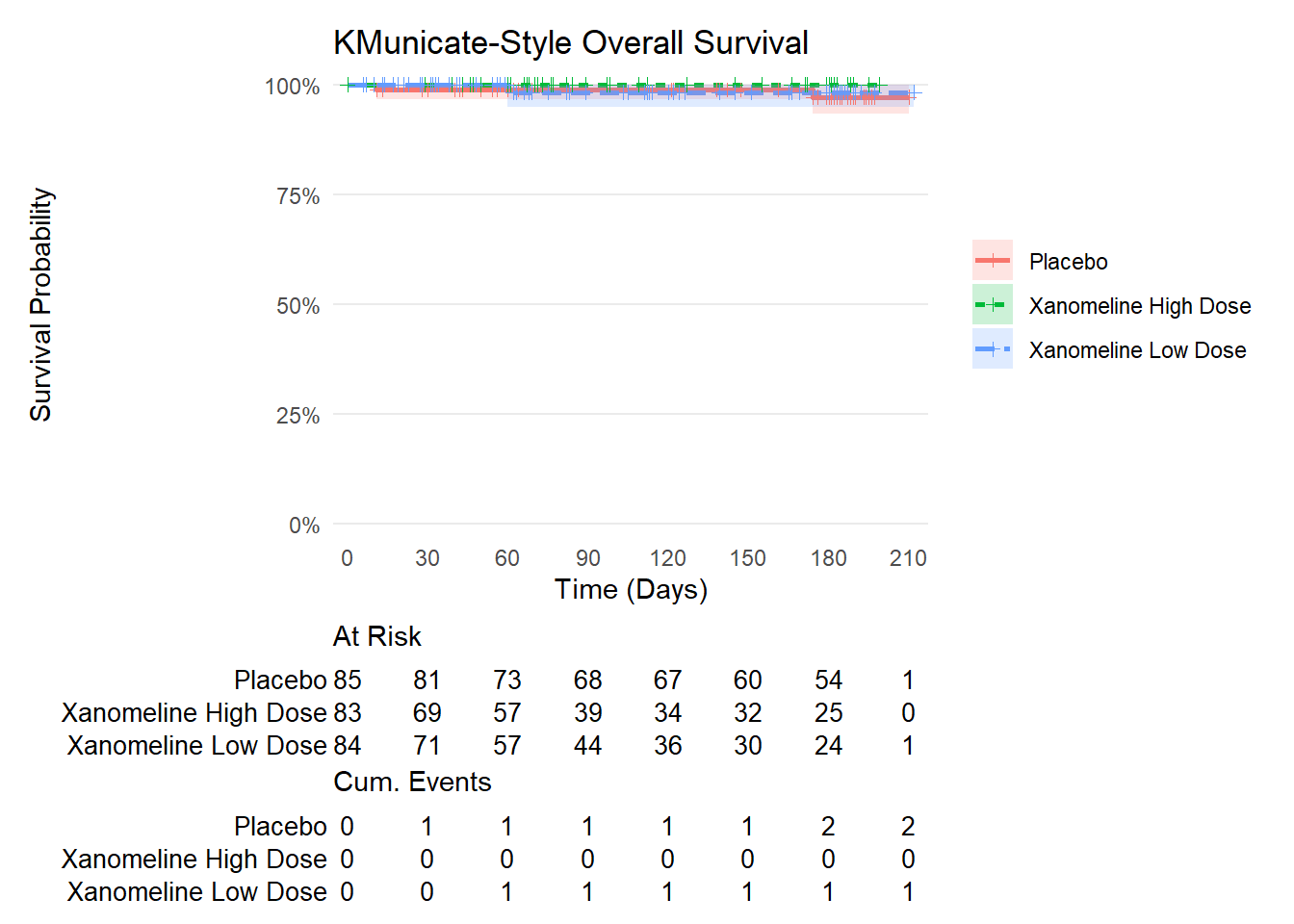

6.1 Step 6: theme_ggsurvfit_KMunicate()

# theme_ggsurvfit_KMunicate() applies the KMunicate style recommended for
# transparent reporting of KM plots (Morris et al., BMJ Open 2019).
# It repositions risk table elements for integrated, publication-ready output.

km_fit |>
  ggsurvfit(linetype_aes = TRUE, linewidth = 0.9) +
  add_confidence_interval() +
  add_censor_mark(shape = 3, size = 1.5) +
  add_risktable(
    risktable_stats = c("n.risk", "cum.event"),
    stats_label     = list(n.risk = "At Risk", cum.event = "Cum. Events")
  ) +
  theme_ggsurvfit_KMunicate() +
  scale_ggsurvfit() +
  labs(x = "Time (Days)", y = "Survival Probability",
       title = "KMunicate-Style Overall Survival")

7 Part 5: Cox Proportional Hazards

7.1 Step 7: coxph() + broom::tidy()

# Surv_CNSR() works inside coxph() as well -- same ADaM convention handling.
# broom::tidy(exponentiate = TRUE) returns hazard ratios with 95% CI.

cox_fit <- survival::coxph(
  Surv_CNSR(AVAL, CNSR) ~ TRTP,
  data = adtte
)

broom::tidy(cox_fit, exponentiate = TRUE, conf.int = TRUE) |>
  dplyr::select(term, estimate, conf.low, conf.high, p.value) |>
  dplyr::rename(
    "Treatment" = term,
    "HR"        = estimate,
    "95% CI LB" = conf.low,
    "95% CI UB" = conf.high,
    "P-value"   = p.value
  ) |>
  knitr::kable(digits = 3, caption = "Cox PH - Hazard Ratios vs Reference")
Cox PH - Hazard Ratios vs Reference
Treatment HR 95% CI LB 95% CI UB P-value
TRTPXanomeline High Dose 0.000 0.000 Inf 0.999
TRTPXanomeline Low Dose 0.719 0.063 8.17 0.790

7.2 Step 8: gtsummary::tbl_regression() – formatted HR table

# tbl_regression(exponentiate = TRUE) renders a formatted HR table with CI.
# add_global_p() adds a global Wald test p-value for the treatment term.
# as_kable() converts to plain kable for Quarto HTML output.

cox_fit |>
  gtsummary::tbl_regression(
    exponentiate = TRUE,
    label        = list(TRTP ~ "Treatment")
  ) |>
  gtsummary::add_global_p() |>
  gtsummary::bold_p() |>
  gtsummary::bold_labels() |>
  gtsummary::as_kable()
Characteristic HR 95% CI p-value
Treatment 0.3
Placebo - -
Xanomeline High Dose 0.00 0.00, Inf
Xanomeline Low Dose 0.72 0.06, 8.17

8 Part 6: Accessing Survival Estimates

8.1 Step 9: tidy_survfit() – extract estimates as a data frame

# tidy_survfit() returns survival estimates as a tidy tibble.
# Useful for custom ggplot2 figures or programmatic summaries.

surv_df <- km_fit |> tidy_survfit()
cat("Columns:", paste(names(surv_df), collapse = ", "), "\n")
Columns: time, n.risk, n.event, n.censor, cum.event, cum.censor, estimate, std.error, conf.high, conf.low, strata, estimate_type, estimate_type_label, monotonicity_type, strata_label, conf.level
cat("Rows:", nrow(surv_df), "\n")
Rows: 156
# First time each stratum crosses 50% survival (= median OS)
surv_df |>
  dplyr::group_by(strata) |>
  dplyr::filter(estimate <= 0.5) |>
  dplyr::slice_head(n = 1) |>
  dplyr::select(strata, time, estimate, conf.low, conf.high) |>
  knitr::kable(digits = 3, caption = "Median Overall Survival by Treatment")
Median Overall Survival by Treatment
strata time estimate conf.low conf.high

9 Validation Checks

cat("\n=== Day 29 Validation ===\n\n")

=== Day 29 Validation ===
cat("Check 1 - adtte rows derived:", nrow(adtte), "\n")
Check 1 - adtte rows derived: 252
cat("Check 2 - Events (CNSR=0):", sum(adtte$CNSR == 0), "\n")
Check 2 - Events (CNSR=0): 3
cat("Check 3 - KM strata count:", length(km_fit$strata), "\n")
Check 3 - KM strata count: 3
cat("Check 4 - tidy_survfit rows:", nrow(surv_df), "\n")
Check 4 - tidy_survfit rows: 156
cat("Check 5 - Cox terms:", length(coef(cox_fit)), "\n")
Check 5 - Cox terms: 2
cat("Check 6 - Log-rank p:", format(survfit2_p(km_fit), digits = 4), "\n")
Check 6 - Log-rank p: p=0.5
cat("\nValidation complete\n")

Validation complete

10 Key Takeaways

  1. pharmaverseadam has no adtte – derive Overall Survival from adsl using DTHDT - TRTSDT (event) and LSTALVDT/EOSDT - TRTSDT (censored)
  2. survfit2() not survfit() – required for add_pvalue() to work; tracks the calling environment for the log-rank test
  3. Surv_CNSR(AVAL, CNSR) – handles ADaM CNSR convention (1=censored, 0=event) automatically; works in both survfit2() and coxph()
  4. ggsurvfit uses + (ggplot2 extension), not |> – any ggplot2::theme(), labs(), or scale function applies directly
  5. add_risktable() uses risktable_stats (not statlist) and stats_label (not label); must always be the last call in the chain
  6. add_quantile(y_value = 0.5) draws median survival lines; add_pvalue(location = "annotation") overlays the log-rank result
  7. tbl_summary() + tbl_regression(exponentiate = TRUE) from gtsummary replace visR::tableone() and Cox HR table wrappers
  8. tidy_survfit() exports the KM curve as a plain tibble for custom figures
